Band Pass Filters

– Standard range

Here is a list of our Standard Band Pass Filters in cavity design, with guaranteed specifications and prices. After entering your required passband center frequency (Fo) and choosing your other requirements, you can generate a data sheet with a valid model number, price, mechanical drawings and a summary of all your specifications. For help on these functions please click on the "Help" button. If you don't find band pass filters here that match your needs, please send us a quotation request for custom band pass filters.

Band pass filters - expertise since 1979

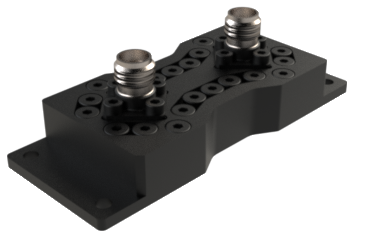

A black Wainwright WBW-5 bandpass filter with flanged mounting feet, shown in perspective. Two silver coaxial connectors sit atop the curved, ribbed housing, which is perforated by a pattern of circular tuning holes. The flat base and mounting ears have pre-drilled screw holes.

Band pass filters for highly selective signal transmission.

Band pass filters from Wainwright Instruments are engineered to deliver precise signal quality over a long service life. They are designed with exceptional temperature stability, making them ideal for demanding applications where consistent performance is critical. All of our filters are RoHs and REACH compliant.

What is a band pass filter?

A band pass filter is a filter that allows signals within a certain frequency range to pass, while attenuating or blocking frequencies below and above this range. The frequency range in which the signal can pass is defined by the lower and upper cut-off frequencies of the filter. Band pass filters are often used in communication systems, audio and radio systems as well as in measurement technology. There they eliminate interfering frequencies and thus isolate the desired signals.

A black, rectangular Wainwright WBEX-5 bandpass filter in a molded plastic housing, shown at a slight angle. Two silver coaxial connectors protrude from the top surface, surrounded by an array of circular tuning ports. The underside features a recessed mounting groove for easy installation.

Band pass filters combine the properties of two other types of filters: a low pass filter , which allows frequencies below a certain limit to pass, and a high pass filter , which allows frequencies above a certain limit to pass. The range between these two cut-off frequencies is referred to as the “passband”. Although a certain amount of signal attenuation in the passband cannot be avoided due to insertion loss, we minimize this loss through precise engineering and and manufacturing processes.

Where are band pass filters used?

Band pass filters are used in many applications and industries where precise frequency selection is required.

Mobile communication & wireless connectivity
Band pass filters ensure a stable and interference-free connection.

Satellite navigation & satellite communication
In satellite technology, band pass filters ensure precise positioning and reliable data transmission.

Broadcasting
Band pass filters ensure that the transmission of radio and TV signals remain constant and of high quality.

Telemetry
In the wireless transmission of measurement data, band pass filters ensure that data collected is of high quality resulting in more reliable analysis.

Select band pass filter

What types of band pass filters are available?

Wainwright Instruments offers band pass filters with various different response types in order to provide effective solutions for a large range of global applications.

  • Butterworth band pass filters: These filters offer a flat amplitude response in the passband and are characterized by uniform attenuation in the stopband. They are ideal for applications where high frequency stability and low distortion are required.
  • Chebyshev band pass filters: These filters offer a steeper slope than Butterworth filters, but allow greater distortion in the passband. They are ideal when strong attenuation of frequencies outside the passband is required.
  • Bessel band pass filters: These filters are ideal when maintaining the signal waveform and minimizing phase distortion are crucial. They offer particularly high phase linearity and are ideal for audio processing applications.
  • Elliptical band pass filters (Cauer filters): These filters offer the fastest attenuation of frequencies outside the passband. They are particularly effective in communication technology when precise frequency separation is required.
  • LC band pass filters: These filters consist of inductors (L) and capacitors (C). They provide a simple and cost-effective solution for band pass filter applications, especially in RF technologies and analog circuits.

Your advantages with band pass filters from Wainwright

  • State-of-the-art filter technology supported by a large development department as well as external project partnerships with leading RF research institutions in Germany.
  • Growing filter knowledge base since 1979.
  • Vast experience integrating our filters in many complex and challenging systems over the years.
  • Direct communication channel - Our sales team consists of filter experts that can communicate directly with the customer’s engineers.
  • No minimum order quantity - customized solutions also available for individual pieces.
  • Virtually no product obsolescence - we are constantly improving our designs, but if necessary we are also happy to reproduce designs from the past.
Select band pass filter

Band pass filters – Frequently asked questions

> > >

Our standard range band pass filters

This list contains many of our Standard Band Pass Filters, as well as guaranteed specifications and prices for these. Each row represents a particular filter and by entering or selecting your required specifications, you will remove those filters from the list that don't meet or exceed your requirements. Apart from selecting various filter specifications, you can also choose to have dimensions and weight displayed in the metric or the imperial system. This choice will also be reflected on the datasheet that is generated. Lastly, you can also choose your required quantity, which will display the respective unit prices.

Should you not find a match for your requirements, please use our custom filter forms to enter your specifications and to request a quotation.

We recommend to proceed as follows:

  1. Enter your required Fco (passband cutoff frequency) in the field where it says "Enter Fco" and press return on keyboard. Now only filters that can be offered with your required Fco will remain in the list.
  2. One by one, select your other required specifications from the drop-down menus at the top of the list. As you select more specs, the list of filters will continually shrink until you are left with a single or very few relevant filters to choose from.
  3. Click Data sheet on the left of any row to view that filter's datasheet. On the datasheet itself you will still be able to adjust your Fco - if necessary - and select your preferred connectors. You can either print out the datasheet or generate a PDF for saving or emailing. You may also generate a quote request directly from the datasheet by adding the quantity required to the Quote Basket and filling out the contact form located there.
Filters Found
Data sheet
Drag table horizontally
Load more No more standard filters available.

Customized band pass filter for individual requirements

Our standard range does not meet your requirements? We develop and manufacture bandpass filters that are precisely tailored to your specific needs and thus maximize the efficiency and performance of your systems.

Configure band pass filter
