Data Sheet: Digitally Tunable Band Pass Filter

This Digitally Tunable Band Pass Filter has a passband with a bandwidth of 40 MHz, a maximum tuning range of 600 MHz - customer defined between 3000 and 4000 MHz - and an insertion loss of 2 dB max. (3 dB max. at corners). It has stopbands from DC to Fo - 50 MHz and from Fo + 50 MHz to 8000 MHz.

Attenuation 40 dB min. Currently not available

Specifications

Typical Performance

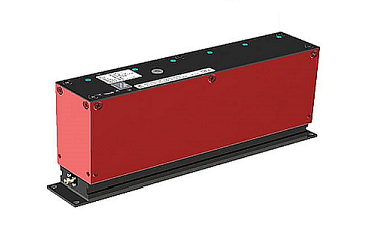

5 Section Cavity Design

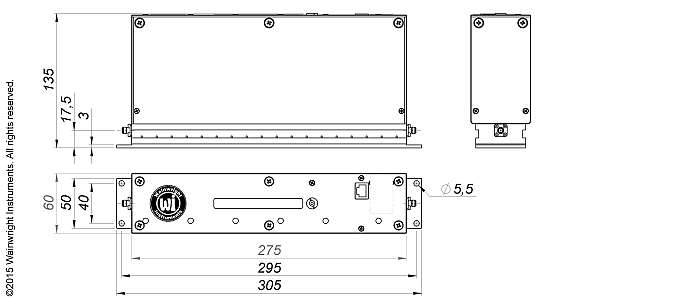

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female
N - Male
BNC - Female
BNC - Male
7/16" - Female

Passband	40 MHz bandwidth tunable from to MHz choose a tuning range of max 600 MHz between 3000 and 4000 MHz
Insertion Loss	2 dB max. at Fo (3 dB max. at Corners)
Return Loss	12 dB min. (VSWR 1.67:1 max.)
Stopband
Stopband Attenuation	40 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	will be quoted on request (See our warranty)
Dimensions (L x W x H)	max. 305 x 60 x 135 mm (connectors may protrude)
Approx. Weight	4 kg
Mounting Provision	15 mm flanges on both ends with 5.5 mm holes
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
