Data Sheet: Diplexer/Duplexer (LP/BP)

This Diplexer is made up of a lowpass and a bandpass section. The lowpass section has a passband from DC to 1000 MHz, with an insertion loss of 0.5 dB max. and an isolation of at least 80 dB. The bandpass section has a passband from 1700 to 2400 MHz, with an insertion loss of 1.2 dB max. and an isolation of at least 80 dB.

Currently not available

Specifications

Typical Performance

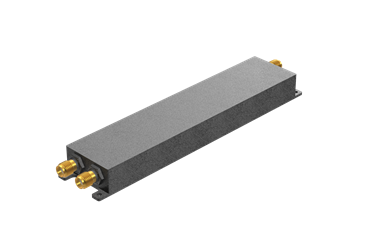

7+12 Section LC Design

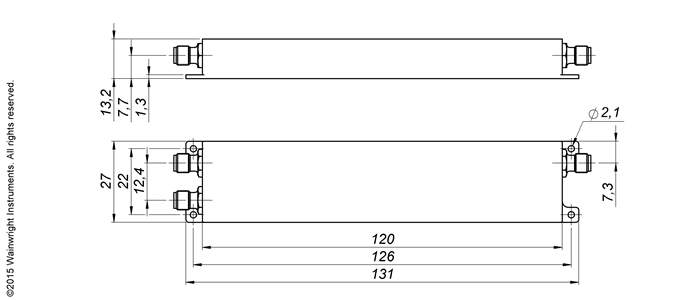

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female

	Band 1 (Low Pass)	Band 2 (Band Pass)
Passbands	DC to 1000 MHz	1700 to 2400 MHz
Insertion Loss	0.5 dB max.	1.2 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	1600 to 4000 MHz	DC-900 & 3400-7200 MHz
Stopband Attenuation	80 dB min.	80 & 80 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 10 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 131 x 27 x 13.2 mm (connectors may protrude)
Approx. Weight	0.15 kg
Mounting Provision	5.5 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
