Data Sheet: Diplexer/Duplexer (LP/HP )

This Diplexer is made up of a lowpass and a highpass section. The lowpass section has a passband from DC to 770 MHz, with an insertion loss of 2 dB max. and an isolation of at least 55 dB. The highpass section has a passband from 870 to 1000 MHz, with an insertion loss of 2 dB max. and an isolation of at least 80 dB.

Currently not available

Specifications

Typical Performance

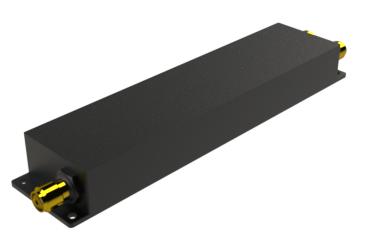

14+10 Section LC Design

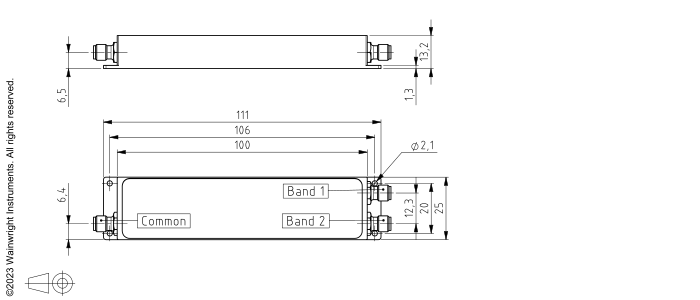

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female

	Band 1 (Low Pass)	Band 2 (High Pass)
Passbands	DC to 770 MHz	870 to 1000 MHz
Insertion Loss	2 dB max.	2 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	870 to 1000 MHz	DC to 770 MHz
Stopband Attenuation	80 dB min.	55 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 50 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 111 x 25 x 13.2 mm (connectors may protrude)
Approx. Weight	0.3 kg
Mounting Provision	5.5 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
