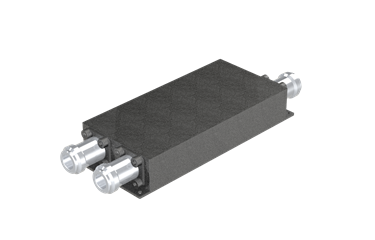

Data Sheet: Diplexer/Duplexer (BP/HP)

This Diplexer is made up of a bandpass and a highpass section. The bandpass section has a passband from 450 to 960 MHz, with an insertion loss of 1 dB max. and an isolation of at least 50 dB. The highpass section has a passband from 1300 to 4000 MHz, with an insertion loss of 1 dB max. and an isolation of at least 90 dB.

Currently not available

Specifications

Typical Performance

16+9 Section LC Design

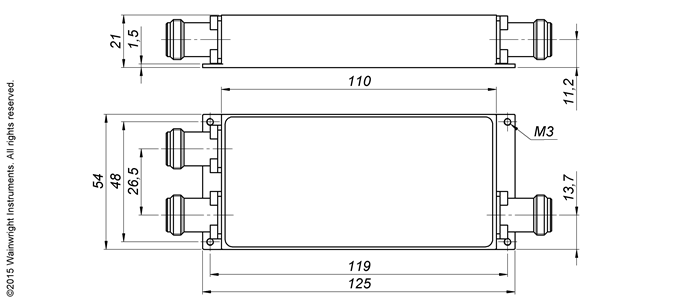

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

N - Female

	Band 1 (Band Pass)	Band 2 (High Pass)
Passbands	450 to 960 MHz	1300 to 4000 MHz
Insertion Loss	1 dB max.	1 dB max.
Return Loss	15 dB min.	15 dB min.
Stopbands	DC-375 & 1300-4000 MHz	DC to 960 MHz
Stopband Attenuation	50 & 50 dB min.	90 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 125 x 54 x 21 mm (connectors may protrude)
Approx. Weight	0.4 kg
Mounting Provision	7.5 mm flanges on both ends
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
