Data Sheet: Diplexer/Duplexer (BP/BP)
{{ filter.filter_data_sheet_description }}
This Diplexer is made up of two bandpass sections. The first bandpass section has a passband from 7190 to 7235 MHz, with an insertion loss of 2 dB max. and an isolation of at least 60 dB. The second bandpass section has a passband from 8450 to 8500 MHz, with an insertion loss of 2.2 dB max. and an isolation of at least 60 dB.

Specifications

Typical Performance

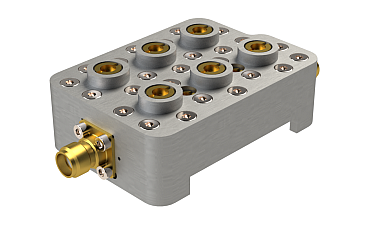

3+3 Section Cavity Design

Cavity

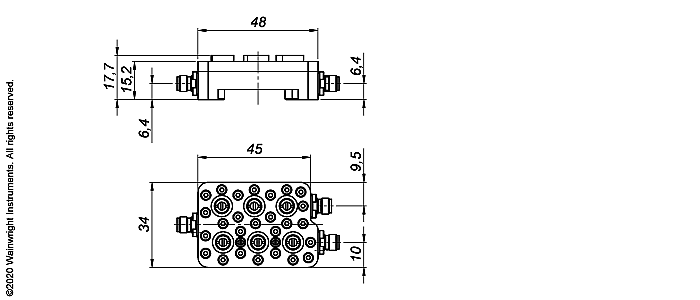

Technical drawing

Typische Leistung – Wainwright Instruments
Connector Options:
  • PC 2.92 - Female
  • PC 2.92 - Male
  Band 1 (Band Pass) Band 2 (Band Pass)
Passbands 7190 to 7235 MHz 8450 to 8500 MHz
Insertion Loss 2 dB max. 2.2 dB max.
Return Loss dB min. dB min.
Stopbands DC-5000 & 8450-16000 MHz DC-7235 & 10000-17000 MHz
Stopband Attenuation 60 & 60 dB min. 60 & 60 dB min.
Operating Temperature 15 °C to 45 °C
Power Handling max. 10 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H) 48 x 34 x 17.7 mm (plus connectors and flanges)
Approx. Weight 0.06 kg
Mounting Provision none
Connector Common Please choose Connector common
Connector 1 Please choose Connector 1
Connector 2 Please choose Connector 2

Unit prices

1–4 pieces

5-9 pieces

0 €

10-24 pieces

0 €

25-49 pieces

0 €

50-99 pieces

0 €

100+ pieces

0 €

Delivery Terms

FCA Andechs (free carrier) according to Incoterms 2010. In Deutschland liefern wir frachtfrei gemäß CPT Incoterms 2010 (unversichert). 1 Delivery time: normally 4 to 6 weeks - depending on quantity ordered and on our work load.

Customer is responsible for observing all applicable export laws in regard to filter application and location of end user.

Certifications

ISO 9001
ISO 14001
Ohris
RoHs / REACH
