Data Sheet: Band Pass Filters
{{ filter.filter_data_sheet_description }}
This Band Pass Filter has a passband with a bandwidth of 4 MHz, a center frequency (Fo) of 10000 MHz and an insertion loss of 4 dB max. (8.5 dB max. at corners). It has stopbands from DC to 9976 MHz and 10024 to 16000 MHz, with an attenuation of at least 50 dB.

Attenuation 50 dB min.

Specifications

Typical Performance

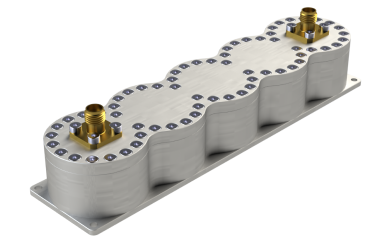

5 Section Waveguide Design

Waveguide

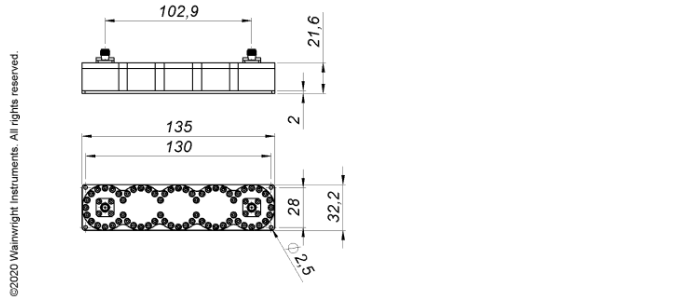

Technical drawing

Typische Leistung – Wainwright Instruments
Connector Options:
  • SMA - Female
  • SMA - Male
  • N - Female
  • N - Male
Passband

choose Fo between 9900 and 10100 MHz

Insertion Loss 4 dB max. at Fo (8.5 dB max. at Corners)
Return Loss 14 dB min. (VSWR 1.5:1 max.)
Stopband
Stopband Attenuation 50 dB min.
Operating Temperature 15 °C to 45 °C
Power Handling max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H) 135 x 32.2 x 21.6 mm (plus connectors and flanges)
Approx. Weight 0.5 kg
Mounting Provision 4 x M2.5 threaded holes in base
Connector 1 Please choose Connector 1
Connector 2 Please choose Connector 2

Unit prices

1–4 pieces

1690 €

5-9 pieces

1606 €

10-24 pieces

1521 €

25-49 pieces

1437 €

50-99 pieces

1352 €

100+ pieces

1268 €

Delivery Terms

FCA Andechs (free carrier) according to Incoterms 2010. In Deutschland liefern wir frachtfrei gemäß CPT Incoterms 2010 (unversichert). 1 Delivery time: normally 4 to 6 weeks - depending on quantity ordered and on our work load.

Customer is responsible for observing all applicable export laws in regard to filter application and location of end user.

Certifications

ISO 9001
ISO 14001
Ohris
RoHs / REACH
