Data Sheet: Band Pass Filters

This Band Pass Filter has a passband with a bandwidth of 300 MHz, a customer defined center frequency (Fo) between 3000 and 4000 MHz and an insertion loss of 2 dB max. (4 dB max. at corners). It has stopbands from DC to Fo - 170 MHz and from Fo + 170 MHz to 8000 MHz., with an attenuation of at least 50 dB.

Attenuation 50 dB min. Currently not available

Specifications

Typical Performance

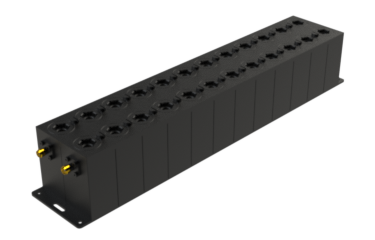

24 Section Cavity Design

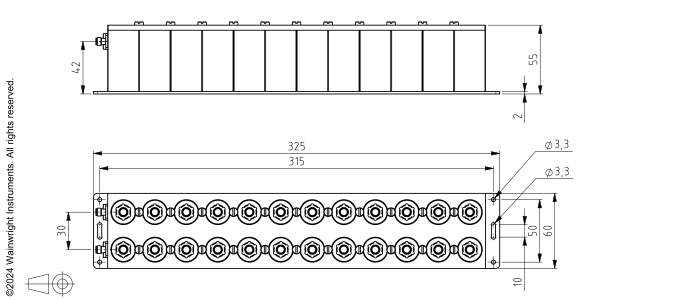

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female
N - Male
BNC - Female
BNC - Male

Passband	choose Fo between 3000 and 4000 MHz
Insertion Loss	2 dB max. at Fo (4 dB max. at Corners)
Return Loss	14 dB min. (VSWR 1.5:1 max.)
Stopband
Stopband Attenuation	50 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	will be quoted on request (See our warranty)
Dimensions (L x W x H)	max. 325 x 60 x 55 mm (connectors may protrude)
Approx. Weight	2.4 kg
Mounting Provision	10 mm flanges on both ends with 3.3 mm holes
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
