Data Sheet: Absorptive Filter (BP/BR)

This Absorptive Filter is made up of a bandpass and a band reject Section. The bandpass section has a passband from 3740 to 3760 MHz, with an insertion loss of 2 dB max. and an isolation of at least 60 dB. The band reject section has a passband from DC to 3710 MHz, with an insertion loss of 1.5 dB max. and an isolation of at least 60 dB and another passband from 3790 to 5000 MHz, with an insertion loss of 1.5 dB max. and an isolation of at least 60 dB.

Currently not available

Specifications

Typical Performance

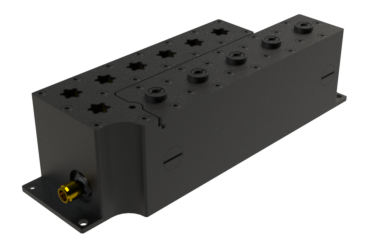

6+6 Section Cavity Design

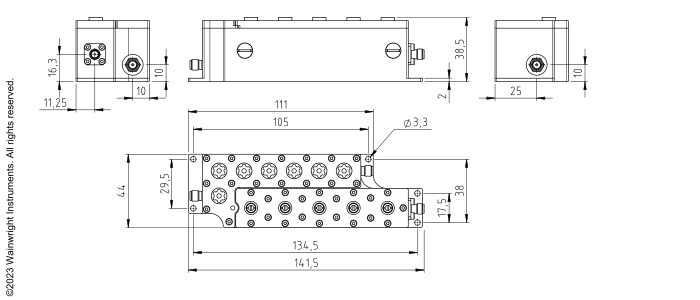

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	3740 to 3760 MHz	DC to 3710 & 3790 to 5000 MHz
Insertion Loss	2 dB max.	1.5 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	DC to 3710 & 3790 to 5000 MHz	3740 to 3760 MHz
Stopband Attenuation	60 & 60 dB min.	60 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 141.5 x 44 x 38.5 mm (connectors may protrude)
Approx. Weight	0.826 kg
Mounting Provision	8.5 mm flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
