Data Sheet: Absorptive Filter (BP/BR)
{{ filter.filter_data_sheet_description }}
This Absorptive Filter is made up of a bandpass and a band reject Section. The bandpass section has a passband from 4400 to 5000 MHz, with an insertion loss of 3 dB max. and an isolation of at least 70 dB. The band reject section has a passband from DC to 4200 MHz, with an insertion loss of 2 dB max. and an isolation of at least 70 dB and another passband from 5150 to 6000 MHz, with an insertion loss of 2 dB max. and an isolation of at least 70 dB.

Specifications

Typical Performance

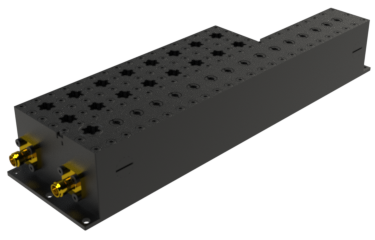

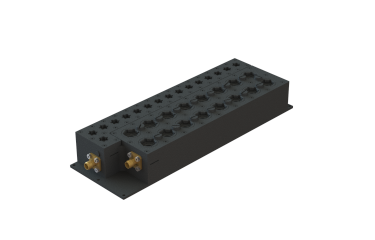

16+16 Section Cavity Design

Cavity

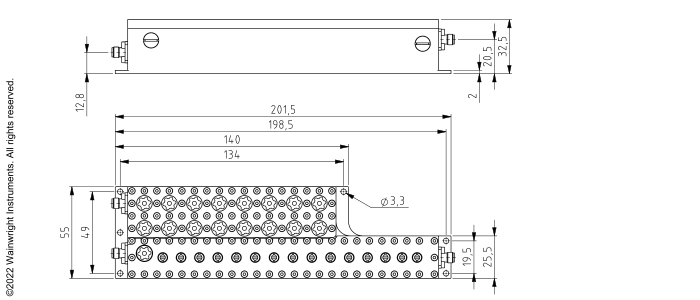

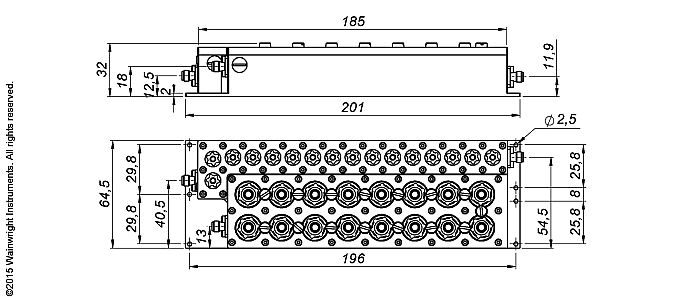

Technical drawing

Typische Leistung – Wainwright Instruments
Connector Options:
  • SMA - Female
  • SMA - Male
  Band 2 (Band Pass) Band 1 & 3 (Band Reject)
Passbands 4400 to 5000 MHz DC to 4200 & 5150 to 6000 MHz
Insertion Loss 3 dB max. 2 dB max.
Return Loss 14 dB min. 12 dB min.
Stopbands DC to 4200 & 5150 to 6000 MHz 4400 to 5000 MHz
Stopband Attenuation 70 & 70 dB min. 70 dB min.
Operating Temperature 15 °C to 45 °C
Power Handling max. 5 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H) 186 x 64.5 x 32 mm (plus connectors and flanges)
Approx. Weight 1.6 kg
Mounting Provision 7.5 mm flanges on both ends with 2.5 mm holes
Connector Common Please choose Connector common
Connector 1 Please choose Connector 1
Connector 2 Please choose Connector 2

Unit prices

1–4 pieces

5-9 pieces

0 €

10-24 pieces

0 €

25-49 pieces

0 €

50-99 pieces

0 €

100+ pieces

0 €

Delivery Terms

FCA Andechs (free carrier) according to Incoterms 2010. In Deutschland liefern wir frachtfrei gemäß CPT Incoterms 2010 (unversichert). 1 Delivery time: normally 4 to 6 weeks - depending on quantity ordered and on our work load.

Customer is responsible for observing all applicable export laws in regard to filter application and location of end user.

Certifications

ISO 9001
ISO 14001
Ohris
RoHs / REACH
