Data Sheet: Absorptive Filter (BP/BR) for LTE UL Band 30 (WCS) (2305-2315 MHz)

WACX8+8-DC-2295/2305-2315/2325-4000-50/60S3 is a Absorptive Filter (BP/BR) that is manufactured using a 8+8 Sec Cavity Design. It has passbands from DC to 2295 MHz, with maximum insertion loss of 2 dB and from 2305 to 2315 MHz, with maximum insertion loss of 5 dB. These passbands have an isolation of 50 dB and 60 dB respectively.

Currently not available

Specifications

Typical Performance

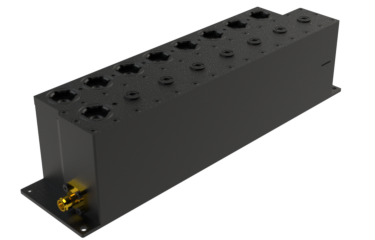

8+8 Section Cavity Design

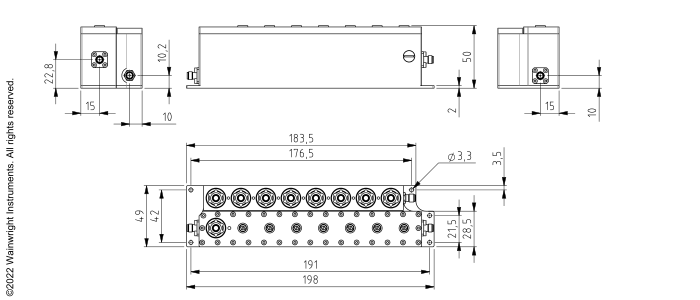

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	2305 to 2315 MHz	DC to 2295 & 2325 to 4000 MHz
Insertion Loss	5 dB max.	2 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	DC to 2295 & 2325 to 4000 MHz	2305 to 2315 MHz
Stopband Attenuation	50 & 50 dB min.	60 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 198 x 49 x 50 mm (connectors may protrude)
Approx. Weight	1.6 kg
Mounting Provision	10 mm Flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
