Data Sheet: Absorptive Filter (BP/BR) for LTE UL & DL Band 39 (1880-1920 MHz)

WACX6+6-DC-1830/1880-1920/1970-4000-70S3 is a Absorptive Filter (BP/BR) that is manufactured using a 6+6 Sec Cavity Design. It has passbands from DC to 1830 MHz, with maximum insertion loss of 2 dB and from 1880 to 1920 MHz, with maximum insertion loss of 2.5 dB. These passbands have an isolation of 70 dB and 70 dB respectively.

Currently not available

Specifications

Typical Performance

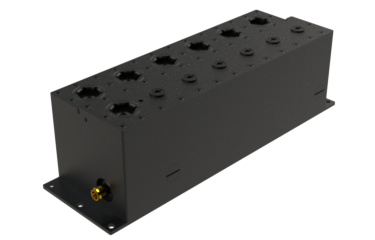

6+6 Section Cavity Design

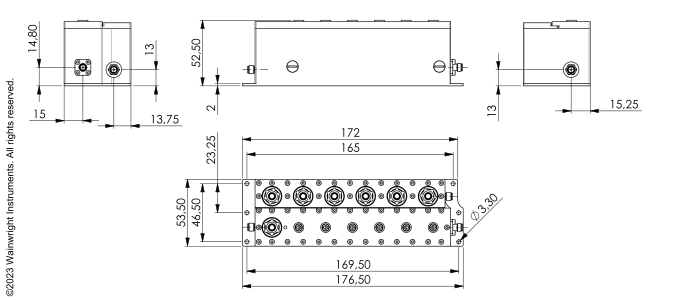

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	1880 to 1920 MHz	DC to 1830 & 1970 to 4000 MHz
Insertion Loss	2.5 dB max.	2 dB max.
Return Loss	16 dB min.	14 dB min.
Stopbands	DC to 1830 & 1970 to 4000 MHz	1880 to 1920 MHz
Stopband Attenuation	70 & 70 dB min.	70 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 50 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 176.5 x 53.5 x 52.5 mm (connectors may protrude)
Approx. Weight	1.7 kg
Mounting Provision	10 mm Flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
