Data Sheet: Absorptive Filter (BP/BR) for LTE UL & DL Band 41 (2496-2690 MHz)

WACX10+10-DC-2420/2496-2690/2770-4500-60S3 is a Absorptive Filter (BP/BR) that is manufactured using a 10+10 Sec Cavity Design. It has passbands from DC to 2420 MHz, with maximum insertion loss of 1 dB and from 2496 to 2690 MHz, with maximum insertion loss of 1.5 dB. These passbands have an isolation of 60 dB and 60 dB respectively.

Currently not available

Specifications

Typical Performance

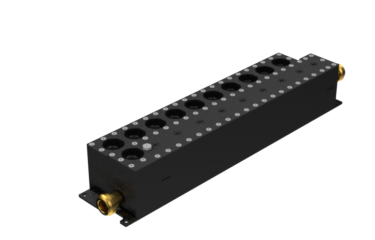

10+10 Section Cavity Design

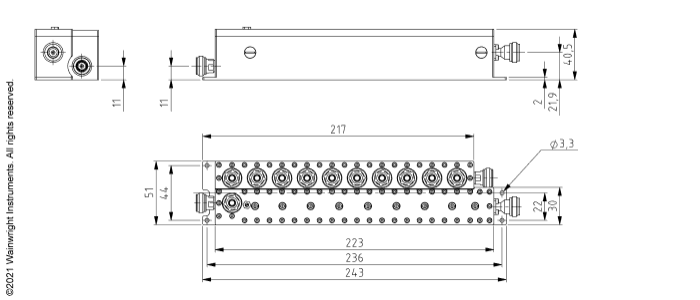

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	2496 to 2690 MHz	DC to 2420 & 2770 to 4500 MHz
Insertion Loss	1.5 dB max.	1 dB max.
Return Loss	17 dB min.	14 dB min.
Stopbands	DC to 2420 & 2770 to 5850 MHz	2496 to 2690 MHz
Stopband Attenuation	60 & 60 dB min.	60 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 50 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 243 x 51 x 40.5 mm (connectors may protrude)
Approx. Weight	1.8 kg
Mounting Provision	10 mm Flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
