Data Sheet: Absorptive Filter (BP/BR) for CDMA2000 UL Band 20 (1626.5-1660.5 MHz)

WACX10+10-DC-1607/1626.5-1660.5/1720-3000-60S3 is a Absorptive Filter (BP/BR) that is manufactured using a 10+10 Sec Cavity Design. It has passbands from DC to 1607 MHz, with maximum insertion loss of 2 dB and from 1626.5 to 1660.5 MHz, with maximum insertion loss of 2.5 dB. These passbands have an isolation of 60 dB and 60 dB respectively.

Currently not available

Specifications

Typical Performance

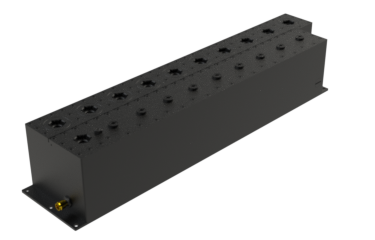

10+10 Section Cavity Design

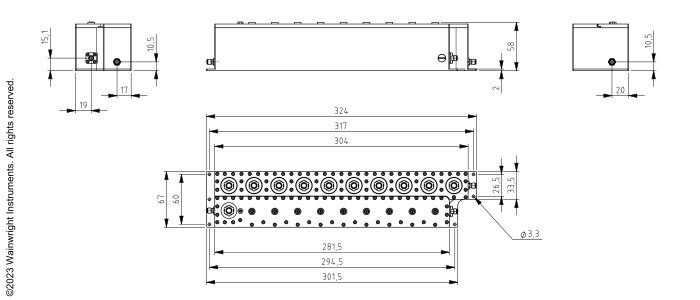

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	1626.5 to 1660.5 MHz	DC to 1607 & 1720 to 3000 MHz
Insertion Loss	2.5 dB max.	2 dB max.
Return Loss	14 dB min.	14 dB min.
Stopbands	DC to 1607 & 1720 to 3000 MHz	1626.5 to 1660.5 MHz
Stopband Attenuation	60 & 60 dB min.	60 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 50 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 324 x 67 x 58 mm (connectors may protrude)
Approx. Weight	4 kg
Mounting Provision	10 mm Flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
