WACX2024-DC-5775-5925-7125-7275-10000-50-60

On this datasheet you can select your preferred connectors. Click Download PDF to generate a PDF document for saving or emailing. You can generate a quote request by entering a quantity in the field at the bottom of the page and clicking Add to Quote Basket. When done selecting filters, please click Quote Basket at the top of the page and fill in the contact form. Before sending us the quotation request you will be able to make adjustments to the quantities or remove items. A copy of your request will be sent to you via email.

Data Sheet: Absorptive Filter (BP/BR) for 5G NR UL & DL Band n96 (5925-7125 MHz)

WACX20+24-DC-5775/5925-7125/7275-10000-50/60S3 is a Absorptive Filter (BP/BR) that is manufactured using a 20+24 Sec Cavity Design. It has passbands from DC to 5775 MHz, with maximum insertion loss of 3 dB and from 5925 to 7125 MHz, with maximum insertion loss of 2.5 dB. These passbands have an isolation of 50 dB and 60 dB respectively.

Currently not available

Specifications

Typical Performance

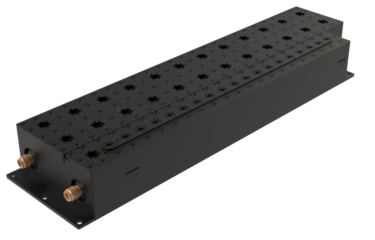

20+24 Section Cavity Design

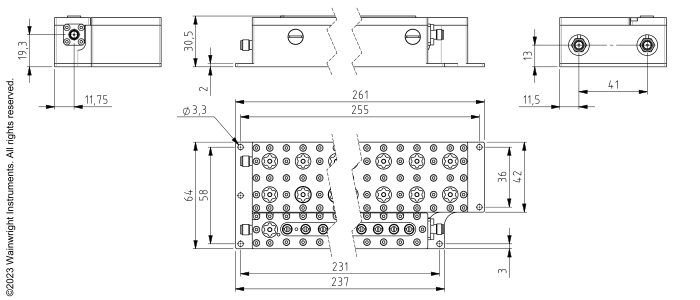

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female
SMA - Male
N - Female

	Band 2 (Band Pass)	Band 1 & 3 (Band Reject)
Passbands	5925 to 7125 MHz	DC to 5775 & 7275 to 10000 MHz
Insertion Loss	2.5 dB max.	3 dB max.
Return Loss	12 dB min.	12 dB min.
Stopbands	DC to 5775 & 7275 to 10000 MHz	5925 to 7125 MHz
Stopband Attenuation	50 & 50 dB min.	60 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 100 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 261 x 64 x 30.5 mm (connectors may protrude)
Approx. Weight	2.2 kg
Mounting Provision	10 mm Flanges on both ends with 3.3 mm holes
Connector Common	Please choose Connector common
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
