Data Sheet: Band Pass Filters

This Band Pass Filter has a passband with a bandwidth of 200 MHz, a customer defined center frequency (Fo) between 6000 and 10000 MHz and an insertion loss of 2.5 dB max. (3.75 dB max. at corners). It has stopbands from DC to Fo - 200 MHz and from Fo + 200 MHz to 1.9 x Fo MHz., with an attenuation of at least 40 dB.

Attenuation 40 dB min.

Specifications

Typical Performance

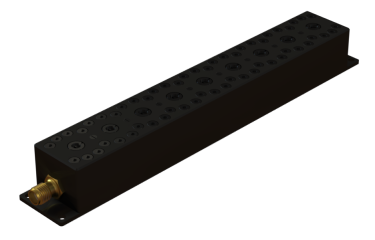

9 Section Cavity Design

Technical drawing

Typische Leistung – Wainwright Instruments

Connector Options:

SMA - Female

Passband	choose Fo between 6000 and 10000 MHz
Insertion Loss	2.5 dB max. at Fo (3.75 dB max. at Corners)
Return Loss	14 dB min. (VSWR 1.5:1 max.)
Stopband
Stopband Attenuation	40 dB min.
Operating Temperature	15 °C to 45 °C
Power Handling	max. 25 W CW into a 2:1 VSWR (See our warranty)
Dimensions (L x W x H)	max. 138.5 x 22 x 18.4 mm (plus connectors and flanges)
Approx. Weight	0.3 kg
Mounting Provision	7.5 mm flanges on both ends with 2.5 mm holes
Connector 1	Please choose Connector 1
Connector 2	Please choose Connector 2
